OEM/ODM accettabile, produttore di chioschi.
| Luogo di origine: | Guangdong, Cina |
| Marca: | HERONG Brand |
| Certificazione: | CE CI CO |
| Numero di modello: | ATM A06T |
| Quantità di ordine minimo: | 1 |
|---|---|
| Imballaggi particolari: | Con imballaggi standard o secondo le richieste del cliente |
| Tempi di consegna: | 15 ~ 20 giorni |
| Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 10000 al mese |
| Standard: | Conforme alla maggior parte delle specifiche standard bancarie, tra cui CEN/XFS, NDC, DDC, ISO8583, | Sistema operativo: | Microsoft Windows 10 |
|---|---|---|---|
| processore: | Supporto alla CPU Intel Core i3/i5/i7 | RAM: | Supporta memoria da 16 GB |
| Hdd: | Supporto Max. 1 TB disco rigido | Comunicazione: | RJ45, WIFI, X.25, ecc. |
| Energia: | AC 220V~240V,50~60 Hz, protezione contro le sovratensioni, UPS ((opt.) | Borsa di contanti: | 4 unità di prelievo, 1 unità di rifiuto/ritiro |
| Capacità: | L'unità di prelievo supporta banconote fino a 310 mm di spessore, l'unità di rifiuto supporta bancon | OCR: | Supporto per il riconoscimento del numero di serie delle banconote (opzionale) |

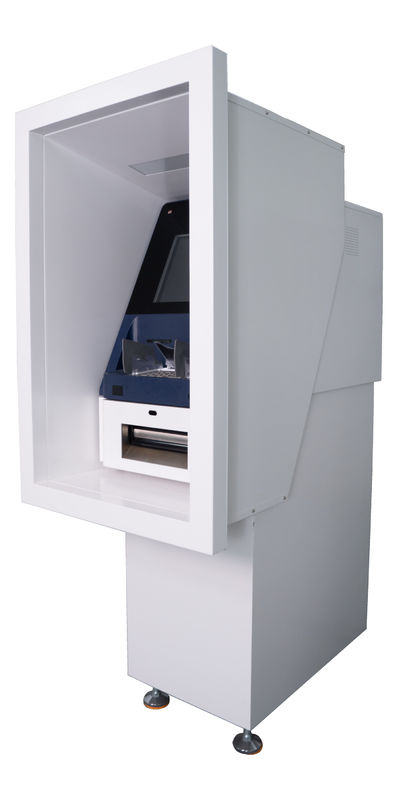

Automatic Teller Machine (ATM) A06T Through The Wall Intelligent Cash Machine User-Friendly
Advantages:
| Dimensions | Width | 500mm |
| Height | 1530mm | |
| Thickness | 750mm | |
| Net Weight | 450kg | |
| Backing plate and carton packaging weight | 470kg | |
| Backing plate and wood packaging weight | 500kg |
![]()
Summary:
| Standard | Compliant with most banking standard specificatons, including CEN/XFS,NDC,DDC,ISO8583,etc. | |
| Security | Safe | UL 291 Level 1 Compliant |
| Lock | Mechanical combination lock | |
| Cameras | Binocular recognition camera(opt.), Ordinary facial camera(opt.), Ordinary exit slot camera(opt.), Ordinary room camera(opt.), Ordinary extra camera(opt.) |
|
| Sensors | Shock sensor(opt.), Infrared sensor(opt.), Smoke sensor(opt.), Light sensor(opt.) |
|
| Others | Explosion-proof glass, PIN Pad shield, DVR(opt.) | |
| Controlling Unit | OS | Microsoft Windows 10 |
| CPU | Support Intel Core i3/i5/i7 CPU | |
| RAM | Support Max.16GB memory | |
| HDD | Support Max.1TB hard disk | |
| Communication | RJ45, WIFI, X.25, etc. | |
| Power | AC 220V~240V,50~60 Hz,Surge protection,UPS(opt) | |
| Cash Processing Unit | Cassette |
4 cash out units, 1 reject/retract unit
|
| Capacity |
The cash out unit supports up to 310 mm thick
banknotes, the reject unit supports Max. 400 banknotes, and the
retract unit supports Max. 100 banknotes. Up to 60 banknotes
per transaction, 6-8 banknotes/second, single reject switch
|
|
| OCR | Support banknote serial number recognition(opt.) | |
| Customer Interface | Display |
17” TFT color LCD touch screen; Privacy filter (opt.); Sunlight readable
|
| Keypad | PCI compliant, 4*4 metal encryption PIN pad, 2*4 function keys, Dust
proof/water proof/vandal resistant, Support customizable panels, Support braille key
|
|
| Card Reader |
EMV certified, Motorized card reader; DIP card reader (opt.),Contact
less smart card reader/writer (opt.), Card retract (opt.), Card return on power failure
(opt.), Anti-skimming design (opt.)
|
|
| Printer | Graphic thermal receipt printer, E-journal printer, Journal printer (opt.) | |
| Light | Top light, Device guide light, Status indicator light, LED electronic screen light(opt.), Logo light(opt.) |
|
| Others |
Bar code reader, Finger print reader, Customer awareness mirror, Speaker,
Audio jack
|
|
| Additional Module |
Power amplifier board, USB extension board, Fan, Heater(opt.)
|
|
| Environment | Work Environment | Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃(-31℉~+167 ℉)(Outdoor with heater) Humidity: 20%~85%(No condensation) |
| Storage Environment | Temperature: -20℃~+85℃(-4℉~+185℉) Humidity: 5%~90%(No condensation) |
Company Introduction:
![]()
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.
Shipment:
![]()
RFQ:
Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.
Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
